android游戏开发框架libgdx的使用(六)–演员和演出

本文版权归作者所有,欢迎转载,但未经作者同意必须保留此段声明,且在文章页面明显位置给出原文连接,否则保留追究法律责任的权利。

转载自夜明的孤行灯

本文链接地址: https://www.huangyunkun.com/2011/11/18/libgdx_6/

本文使用的libgdx是0.92版本,和现在的最新版可能有一些不一样的地方。全文内容仅供参考。

上一篇说到UI,然后之前说到舞台,现在我们可以很轻松的构建一出戏了。

因为actor类在绘制是以x,y值为基准,所以我们可以通过控制x,y值变化演员的位置,但是演员的其他效果需要配合Action类进行操作。

Action类是一个抽象类,所有的具体实现都在com.badlogic.gdx.scenes.scene2d.actions包中。

actions

而包中的类依功能而言可以分为两类:

  1. 控制Action
  2. 表现Action

控制Action没有直接表现效果,它操作的对象是表现Action。

比如Delay。

表现Action就是直接的表现效果,继承自AnimationAction,操作对象是Actor。

比如MoveTo。

现在挨着说吧:

控制类:

Delay $ (Action action,float duration)

延迟duration秒执行action。

Forever $ (Action action)

一直执行action。

Parallel $ (Action... actions)

并行(同时)执行actions。

Repeat $ (Action action,int times)

重复action times次。

Sequence $ (Action... actions)

按顺序执行actions。

Remove $ ()

删除所有Action。

表现类:

FadeIn $ (float duration)

FadeOut $ (float duration)

淡入淡出效果

FadeTo $ (float alpha,float duration)

duration秒改变至alpha。

MoveTo $ (float x,float y,float duration)

MoveBy $ (float x,float y,float duration)

用duration移动到x,y处。

RotateBy $ (float rotation,float duration)

RotateTo $ (float rotation,float duration)

用duration秒旋转rotation度。

ScaleTo $ (float scaleX, float scaleY, float duration)

缩放x到scaleX,y到scaleY,用时duration秒。

一个个写例子太麻烦了,而且实际运用中也多是多个组合运用,下面来看一个综合性的示例:

我们的主角是star

通过action的组合实现闪烁,飞动,旋转等效果。

代码如下:

package com.cnblogs.htynkn.listener;

import com.badlogic.gdx.ApplicationListener;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.graphics.GL10;
import com.badlogic.gdx.graphics.Texture;
import com.badlogic.gdx.graphics.Texture.TextureFilter;
import com.badlogic.gdx.math.MathUtils;
import com.badlogic.gdx.scenes.scene2d.Action;
import com.badlogic.gdx.scenes.scene2d.Stage;
import com.badlogic.gdx.scenes.scene2d.actions.FadeIn;
import com.badlogic.gdx.scenes.scene2d.actions.FadeOut;
import com.badlogic.gdx.scenes.scene2d.actions.MoveBy;
import com.badlogic.gdx.scenes.scene2d.actions.MoveTo;
import com.badlogic.gdx.scenes.scene2d.actions.Parallel;
import com.badlogic.gdx.scenes.scene2d.actions.Repeat;
import com.badlogic.gdx.scenes.scene2d.actions.RotateTo;
import com.badlogic.gdx.scenes.scene2d.actions.Sequence;
import com.badlogic.gdx.scenes.scene2d.actors.Image;

publicclass FirstGame implements ApplicationListener {

private Stage stage;
private Texture texture;

@Override
publicvoidcreate() {
stage =new Stage(Gdx.graphics.getWidth(), Gdx.graphics.getHeight(),
true);
texture =new Texture(Gdx.files.internal("star.png"));
texture.setFilter(TextureFilter.Linear, TextureFilter.Linear);
float duration =4f;
int maxwidth = Gdx.graphics.getWidth() - texture.getWidth();
int maxheight = Gdx.graphics.getHeight() - texture.getHeight();

for (int i =0; i <20; i++) {
Image image =new Image("star" + i, texture);
image.x = MathUtils.random(0, maxwidth);
image.y = MathUtils.random(0, Gdx.graphics.getHeight());//随机出现
Action moveAction = Sequence.$(MoveTo.$(MathUtils.random(0,
maxwidth), MathUtils.random(0, maxheight), duration /2),
MoveBy.$(MathUtils.random(0, maxwidth), MathUtils.random(0,
maxheight), duration /2));//移动方向和地点随机
Action rotateAction = RotateTo.$(360, duration);//旋转
Action fadeAction = Repeat.$(Sequence.$(FadeOut.$(duration /20),
FadeIn.$(duration /20)),10);//闪烁,重复10次
image.action(Parallel.$(moveAction, rotateAction, fadeAction));//所有action并行
stage.addActor(image);
}
Gdx.input.setInputProcessor(stage);
}

@Override
publicvoiddispose() {
texture.dispose();
stage.dispose();
}

@Override
publicvoidpause() {
// TODO Auto-generated method stub

}

@Override
publicvoidrender() {
Gdx.gl.glClear(GL10.GL_COLOR_BUFFER_BIT);
stage.act(Gdx.graphics.getDeltaTime());
stage.draw();
}

@Override
publicvoidresize(int width,int height) {
// TODO Auto-generated method stub

}

@Override
publicvoidresume() {
// TODO Auto-generated method stub

}

}

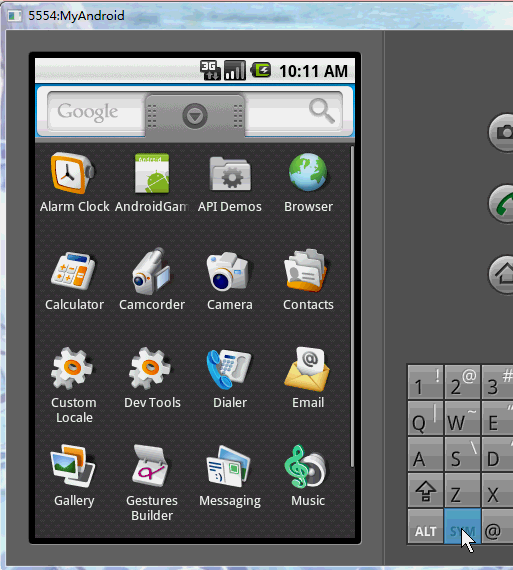

效果(图片有点大…多等等):

xingxing

其实每个action的用法都很简单,主要问题是怎么组合排列来显示一种符合需求的效果。

我发现libgdx的更新不是一般快,每天都有几个版本的。那个通过文件配置UI样式让我觉得非常有意思,但是具体操作中有诸多问题。
